Product Data:
| Model | HKM-TML2 |

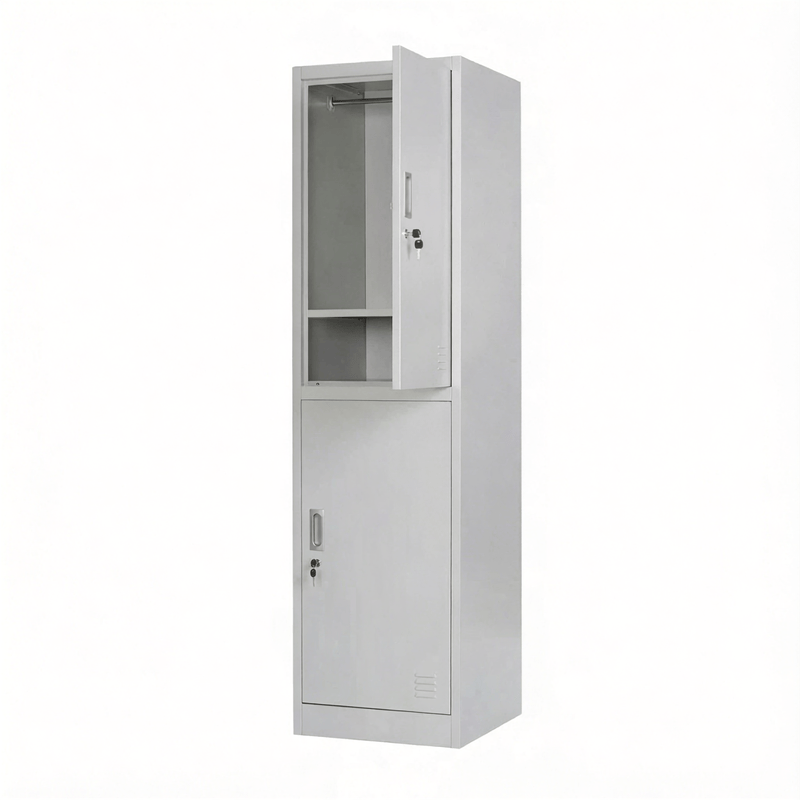

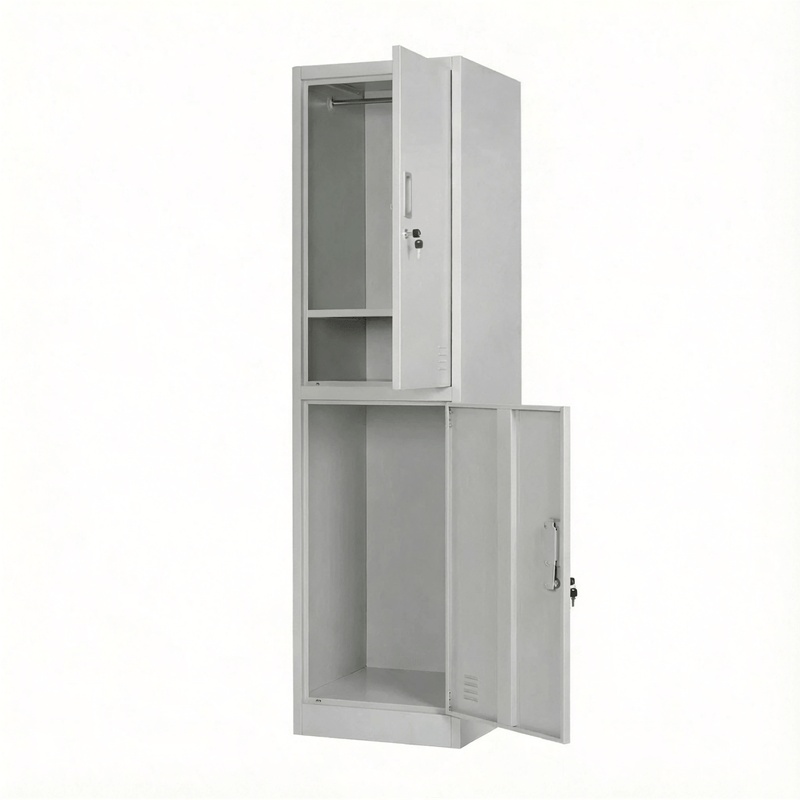

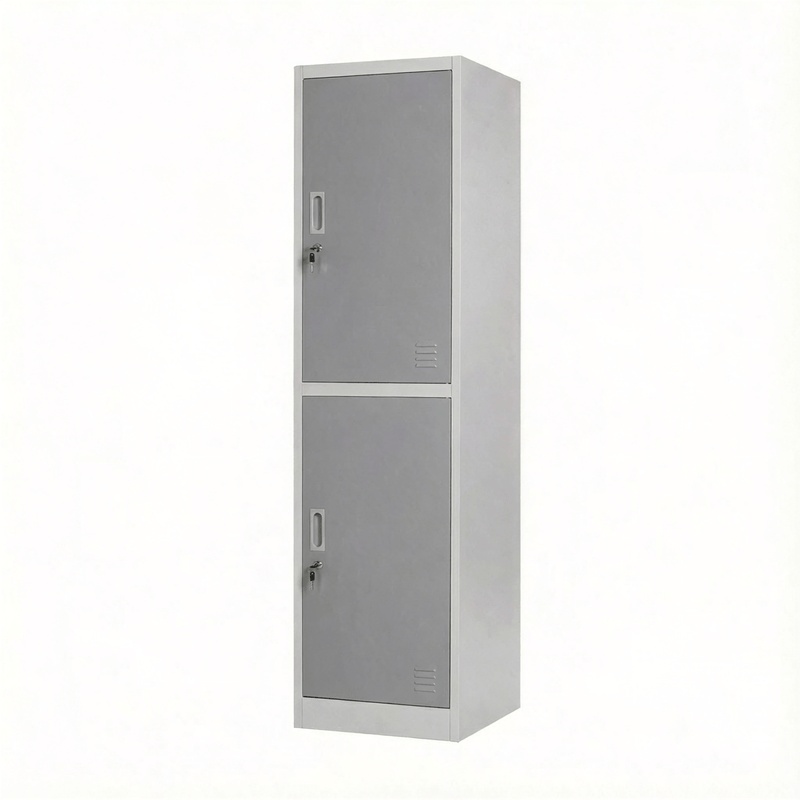

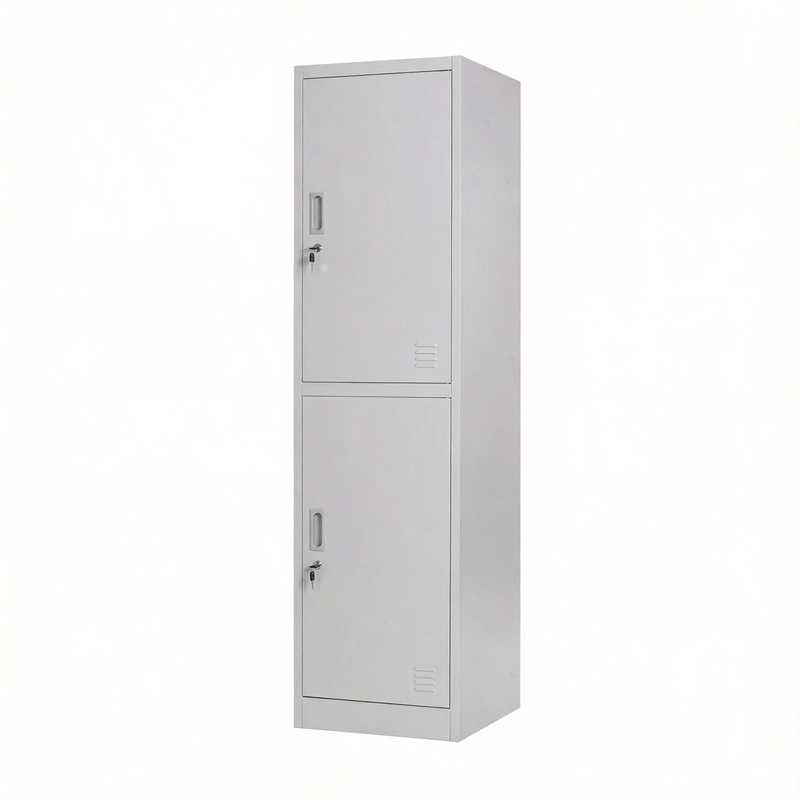

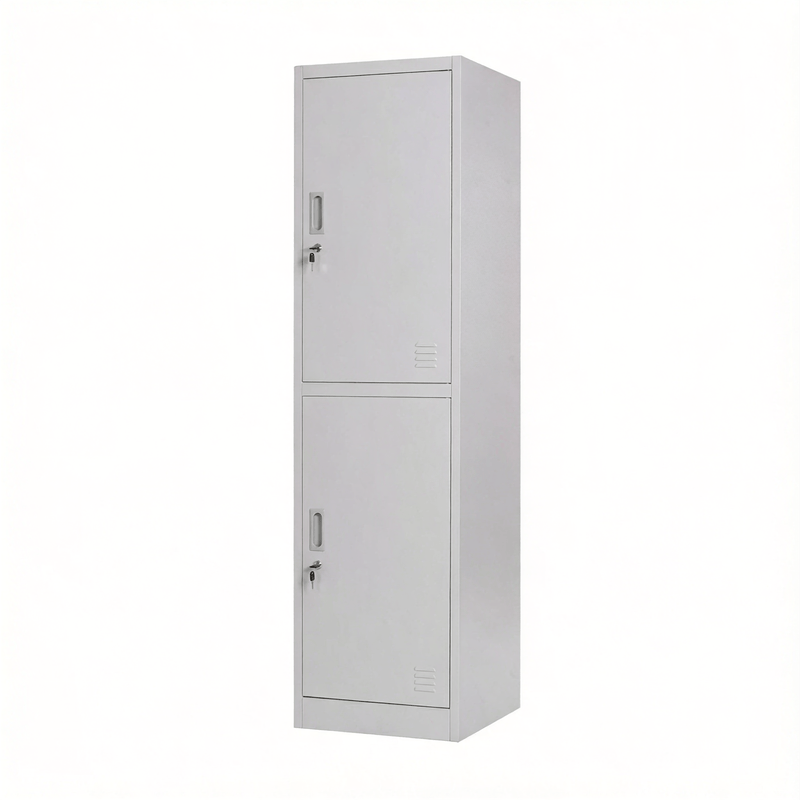

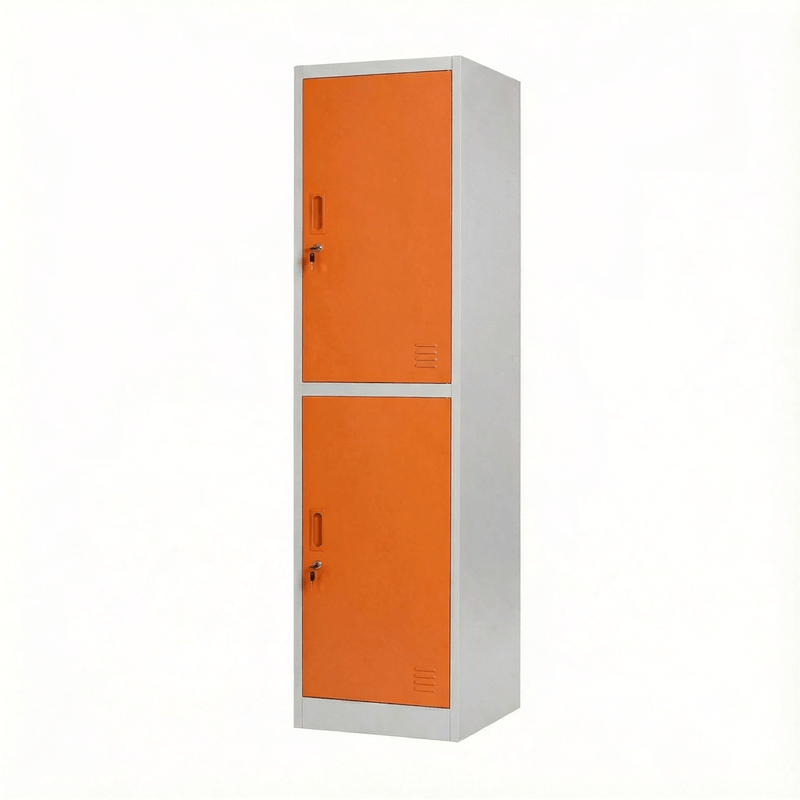

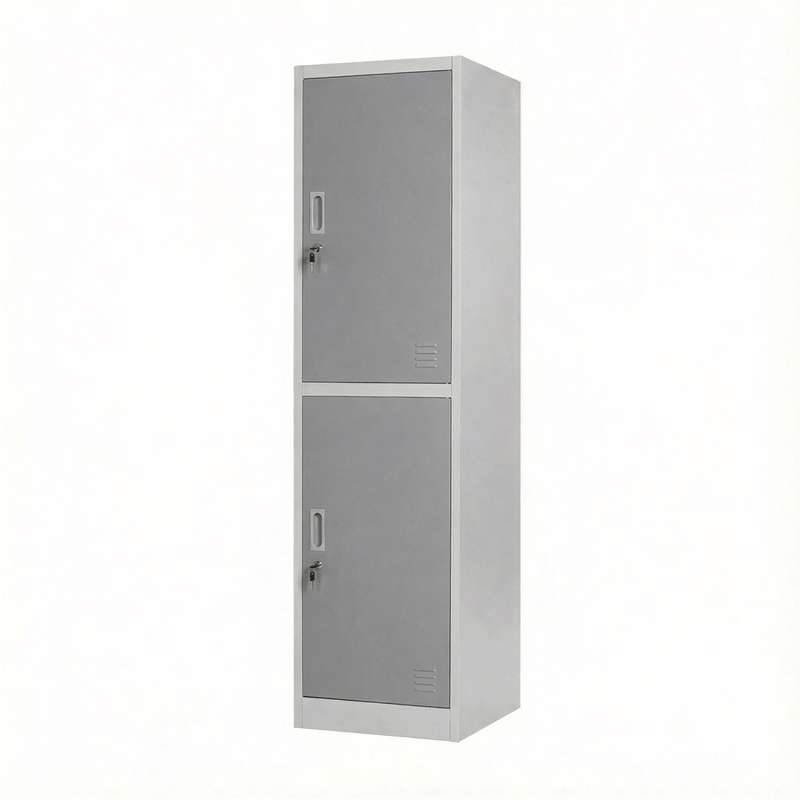

| Name | Two Tier Metal Lockers |
| Product Size | H1720 * W292 * D450mm |
| Package Size | H1650 * W480 * D78mm = 0.0618CBM |
| Loading Qty | 1100 Pcs/40’HQ, 453 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | Chrome coat rod, index holder, keyed camlock or padlock latch. |
| Accessories | 4 keys, assembly screws. |
- Knock-down and easy-to-assemble construction.
- Different locks available as options.
- Different colours available as options.
- Different air ventilation options available.
- Standing legs available.
- Sloping top available.
- Master key available.
- Core-removable lock available.
6 steps to assemble the Two Tier Metal Lockers.
- Connect the left side with the back plate using self-tapping screws (5×12).
- Connect the right side with the back plate in the same way as the first step.
- Fix the door frame onto both side plates.
- Fix the top plate, bottom plate, and middle plate using self-tapping screws (5×12).
- nstall the hanging rod.
- nstall the standing feet using self-tapping screws (5×12), then adjust each part until it fits well after installation.
