Product Data:
| Model | HKM-SL15 |

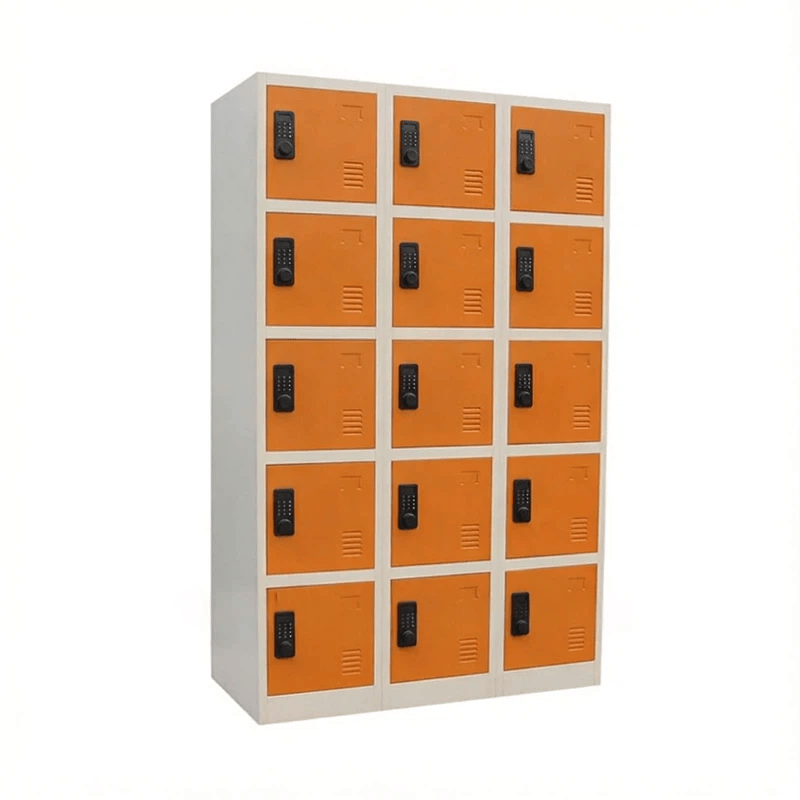

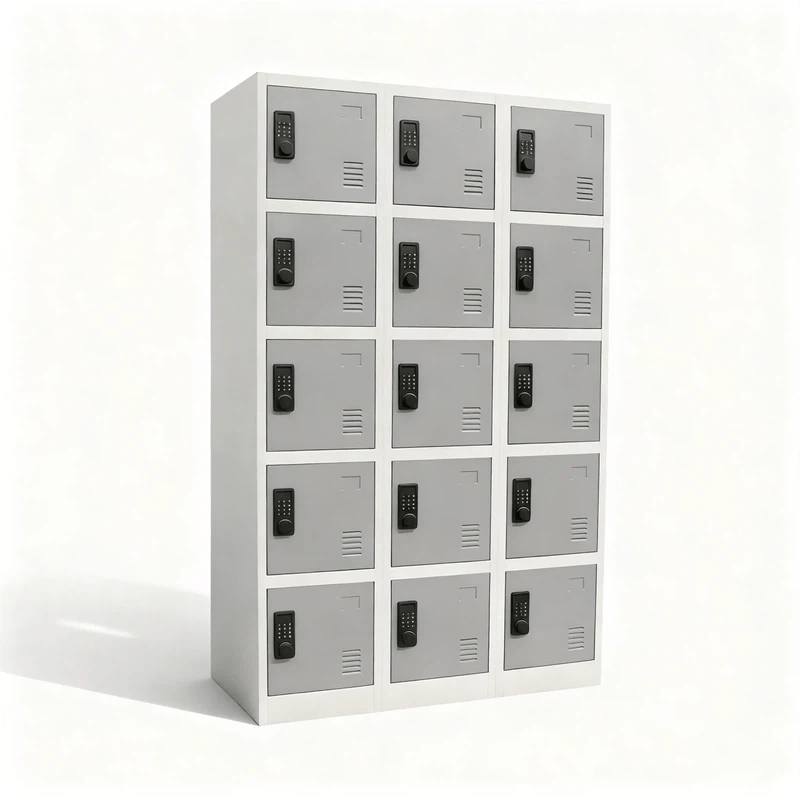

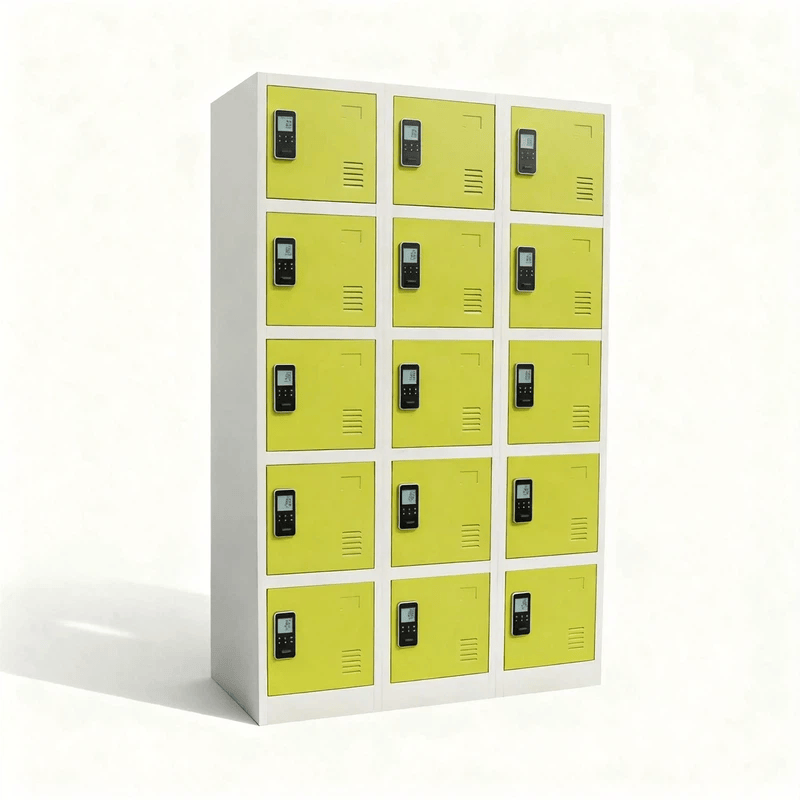

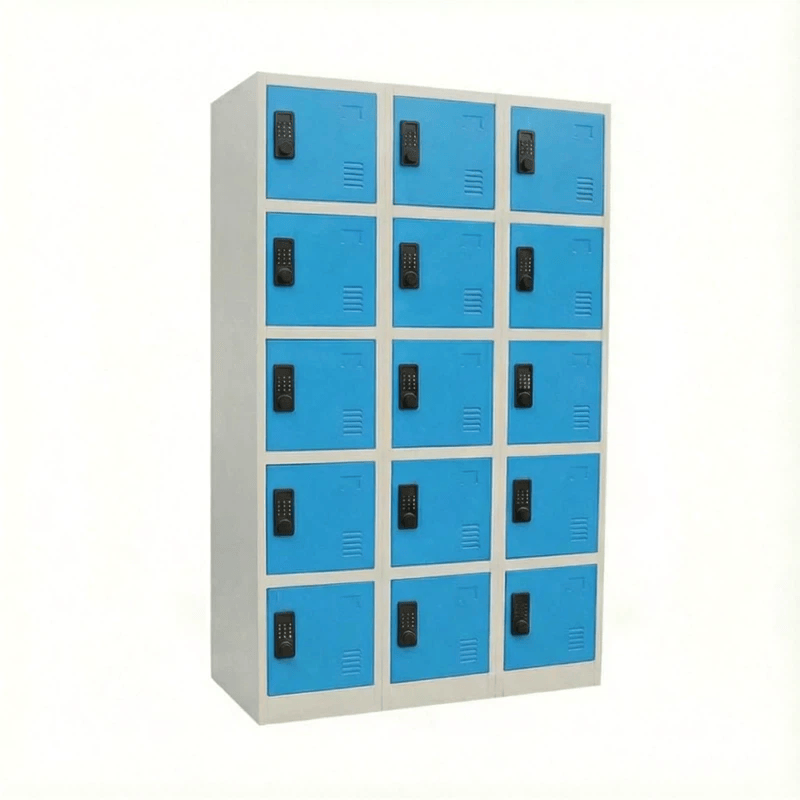

| Name | Fifteen Door Storage Lockers |
| Product Size | H1850 * W900 * D400mm |
| Package Size | H1880 * W930 * D85mm = 0.1486CBM |
| Loading Qty | 457 Pcs/40’HQ, 188 Pcs/20’GP |
| Material | Heavy-gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colours. |
| Fittings | Index holder, keyed cam lock, or padlock latch. |
| Accessories |
30 keys, assembly screws.
|
- Knock-down and easy-assembling construction.
- Different locks available as options.
- Different colors available as options.
- Different air ventilation options available.
- Standing legs available.
- Sloping top available.
- Master key available.
- Core-removable lock available.
6 steps to assemble the 15 Door Sports Lockers.
- Connect the left side plate with the back plate using self-tapping screws (5×12).
- Connect the right side plate with the back plate.
- Fix the door frame as shown in the picture.
- Install the top plate, bottom plate, and middle plate as shown in the picture.
- Install the partition plates. (Pay attention to the difference between the upper and lower ones: the upper one is smaller and the lower one is bigger.)
- Adjust each part until it fits well after installation.
