Product Data:
| Model | HKM-SL6 |

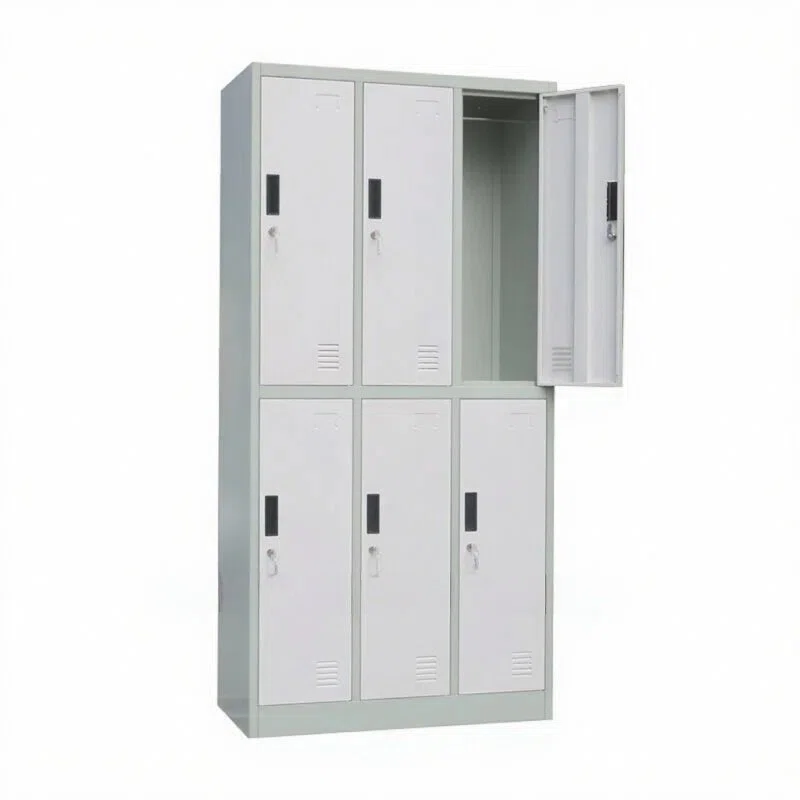

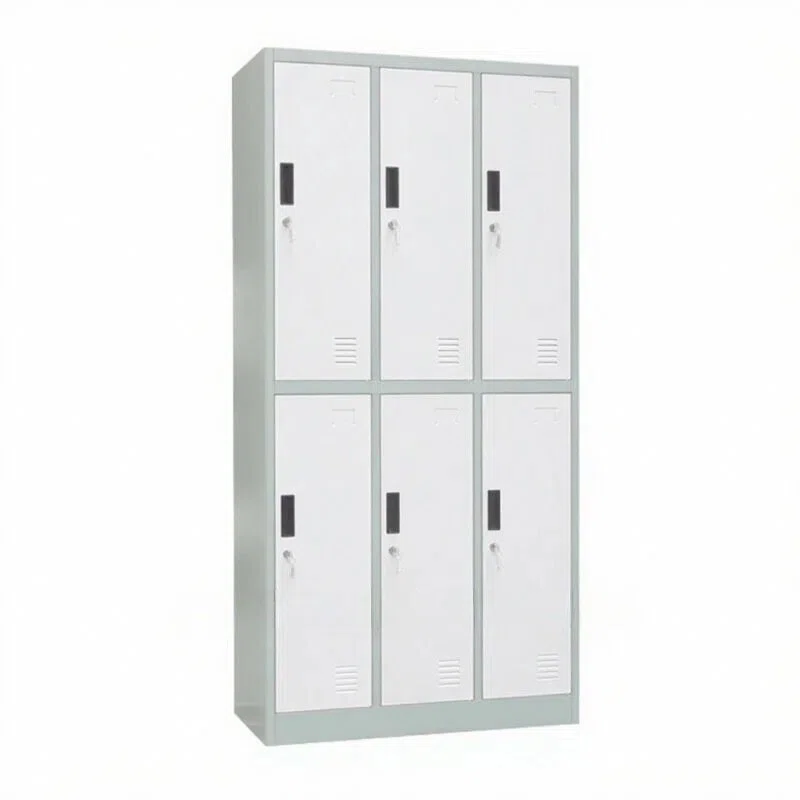

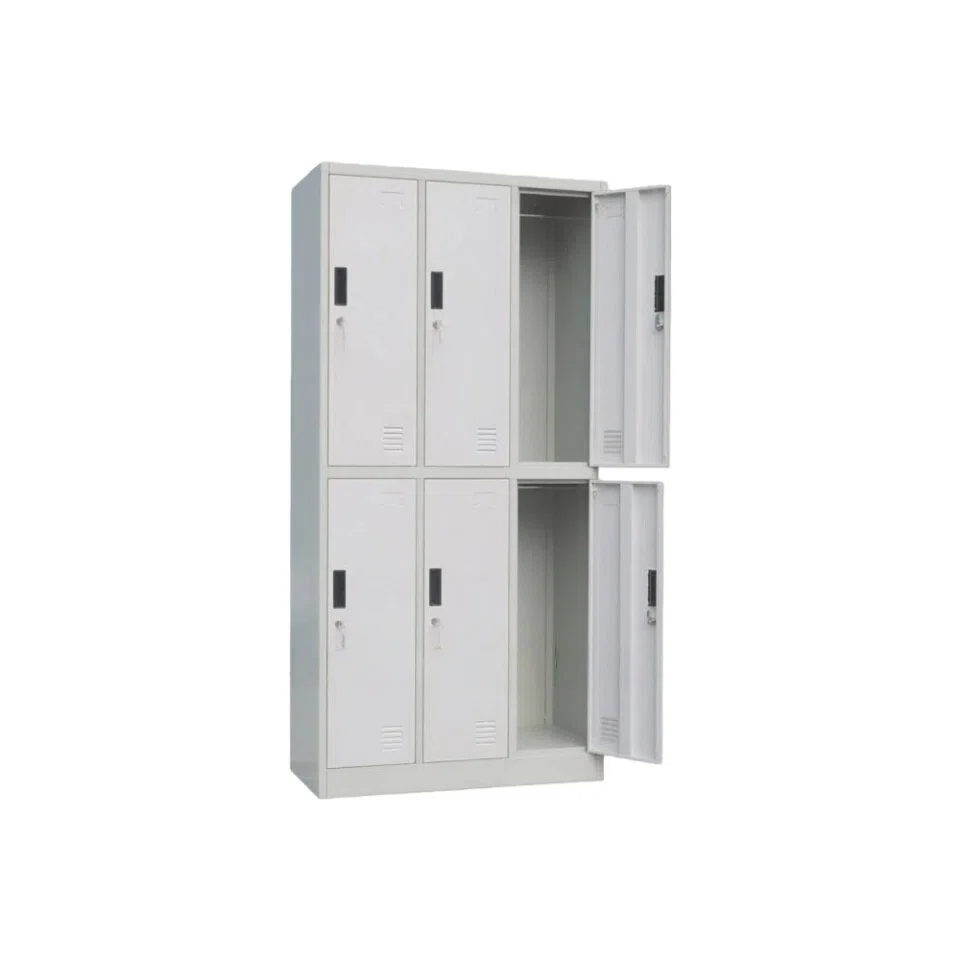

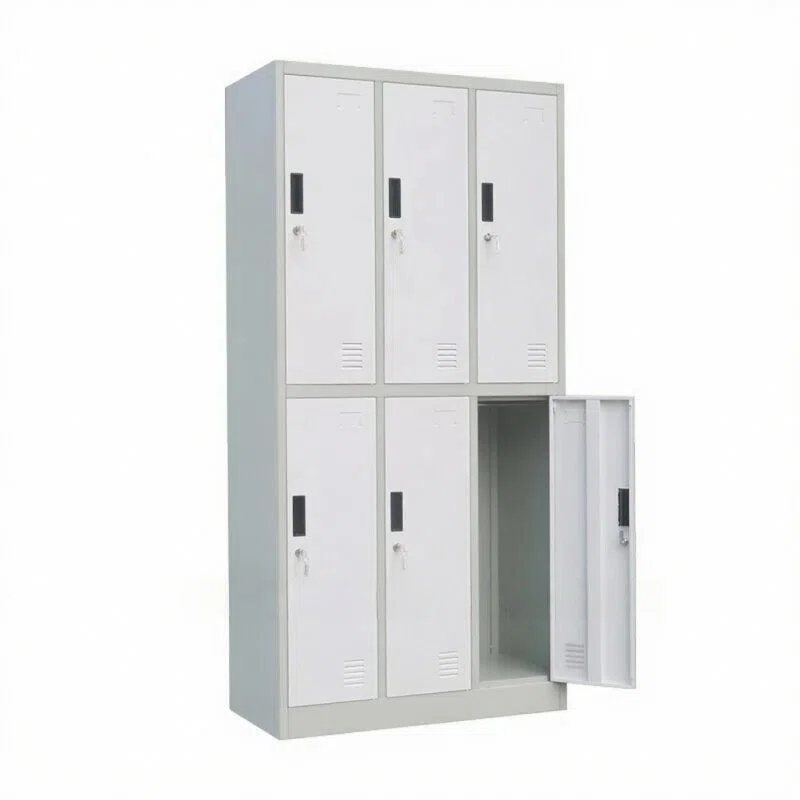

| Name | Six Door Storage Locker |
| Product Size | H1720 * W826 * D450mm |
| Package Size | H1650 * W930 * D75mm = 0.1151CBM |
| Loading Qty | 590 Pcs/40’HQ, 243 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | Chrome coat rod, index holder, keyed camlock or padlock latch. |
| Accessories | 12 keys and assembly screws. |
- Knock-down and easy-to-assemble construction.
- Different locks available as options.
- Different colors available as options.
- Different air ventilation options available.
- Standing legs available.
- Sloping top available.
- Master key available.
- Core-removable lock available.
9 steps to assemble the Six Door Storage Lockers.
- Connect the left side plate to the back plate with self-tapping screws (5×12).
- Connect the right side plate to the back plate.
- Fix the door frame to both side plates.
- Install the top and bottom plates respectively.
- Install the middle plates.
- Install the hanging rods.
- Install the partition plates. (Pay attention to the difference between the upper and lower ones; the upper one is smaller, and the lower one is bigger.)
- Install the standing feet with screws (5×12).
- Adjust each part until it fits well after installation.
